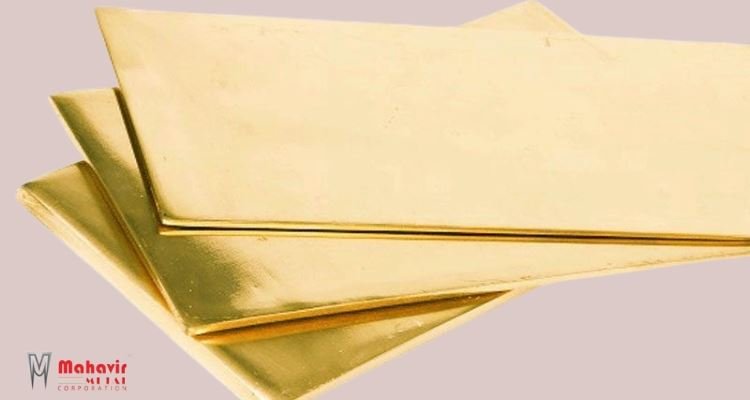

Phosphor Bronze Sheet Manufacturer, PH Bronze Sheet, UNS C52400 Phosphor Bronze Plate, UNS C51000 Phosphor Bronze Plate Supplier in India
Mahavir Metal Corporation is a reliable Phosphorous Bronze Sheet Manufacturers in India. We supply premium-grade UNS C52400 and UNS C51000 Phosphor Bronze Plate which serve industries that need high-strength corrosion-resistant Phosphor Bronze Sheet/Plate. Our manufacturing unit follows ASME SB139 standards to produce high-quality ph bronze sheets which exhibit exceptional durability with thermal stability properties and electrical conductivity properties. The weight measurement per kg depends on the thickness combined with the size of the Phosphor Bronze Sheet while maintaining a high strength-to-weight ratio for structural and industrial purposes.
Phosphorous Bronze Sheet Manufacturers, Phosphorus Plate & Sheet Exporter, ASME SB 103 Phosphorous Bronze Plates, Phosphorous Bronze Alloy Hot Rolled Sheet Supplier in India
Mahavir Metal Corporation is a major Phosphor Bronze Sheet Manufacturers and Supplier in India. We provide PH Bronze Sheets at various thicknesses from 0.2mm to 50mm with standard dimensions together with customizable cut sizes to fit multiple industrial needs. Due to its superior resistance against wear and superior machinability features PH Bronze is best suited for marine applications along with electrical systems aerospace applications and industrial engineering projects. We are also a esteemed Phosphorous Bronze Bush Supplier in India.
Phosphorous Bronze Sheet Specifications
Standard :
- ASTM B139: Standard specification for phosphorus bronze sheets, strips, and plates.
- DIN 17662: German standard for copper alloys, including phosphorus bronze.
Testing of PB Sheets
- Tensile Strength Test: Withstand mechanical stress without breaking.
- Hardness Test: Resistance of the sheet to indentation or surface wear.
PB Sheet Features
- Good Strength and Toughness: Combination of strength, toughness, and wear resistance.
- Excellent Corrosion Resistance: High resistance to corrosion, particularly in seawater.
Sizes (Diameter) Lengths
- Sizes: 0.1mm to 100mm
- Width: Up to 400mm
- Length: Up to 6000mm
Grades Availables of Phosphorous Bronze Sheet
Customers can find brass sheets with different finishes which match diverse industrial applications. The Natural Finish delivers an unfinished industrial appearance thus making it appropriate for machine work followed by processing. The soft-textured Satin Brushed Brass Sheet consists of an elegant smooth surface that designers commonly use for decorative and architectural applications.
Equivalents Grades of Phosphorous Bronze Sheet / Plate
| Alloy Description | American Spec. | German Spec. | British Spec. |
| UNS | SAE | Alloy | |
| Phosphor Bronze Grade I | C54400 | CuSn4 | PB101 |
| Phosphor Bronze Grade II | C51000 | CuSn5 | PB102 |
| Phosphor Bronze Grade III | C51900 | CuSn6 | PB103 |
| Phosphor Bronze IV | C52100 | CuSn8 | PB104 |
Phosphorous Bronze Sheet Chemical Composition
| Component | Wt. % |
| Cu | 90.5 – 92.8 |
| Fe | Max 0.1 |
| P | 0.03 – 0.35 |
| Pb | Max 0.05 |
| Sn | 7 – 9 |
| Zn | Max 0.2 |
Phosphorous Bronze Sheet Mechanical Properties
| Condition | Size | T.S. 2 Kg/mm2 | EL% Min |
| Half-Hard (HB) | Up to 12.5
12.5 to 50 50 to 100 |
40 min
38.5 min 35 min |
18%
18% 18% |
Applications of Phosphorous Bronze Sheet
Phosphorous Bronze Sheet Manufacturers in India
- Mahavir Metal Corporation
Packing of Phosphorous Bronze Sheet
We apply the safest and most efficient means of packaging for every kind of delivery.
- Wooden Boxes
- Wooden Pallets
- Shrink-Wrapp
- Gunny Bags
Ready Stock of Phosphorous Bronze Sheet/Plate in India
- Phosphor Bronze Sheet
- Phosphorus Bronze Plate
- Copper Phosphorus Alloy Sheets
- ASTM B139 Phosphorus Bronze
- Pb102 Shim Sheet
- Phosphorus Bronze Sheet Supplier
- Phosphorus Bronze Plate Manufacturer
- Phosphorus Bronze Cold Rolled Sheets
- Hot Rolled Phosphorus Bronze Sheet
- Cold Rolled Phosphorus Bronze Plate
- Phosphorus Bronze Strips
- Phosphorus Bronze Sheet for Electrical Applications
- Phosphor Bronze Sheet Price
- Phosphor Bronze Sheet for Marine Applications
- Phosphor Bronze Sheet for Industrial Use
- Phosphor Bronze Sheet Specifications
- Phosphor Bronze Sheet Processing
- Phosphorus Bronze Sheet Weight Per kg
- Phosphor Bronze Sheet Mechanical Properties
- Phosphorus Bronze Sheet Fabrication
C51000 Phosphor Bronze Sheet Supplier in India :
We have over tons of Phosphorous Bronze Sheet in stock. We are one of India’s leading suppliers of Ph Bronze Brushed Brass Sheet. We also Accept customized Ph Bronze Plate orders as per the client's requirements from Mumbai, Navi Mumbai, Chennai, Hyderabad, and many more.
Phosphorous Bronze Sheet Supplier & Exporters in India :
Mahavir Metal Corporation is a renowned supplier and exporters of premium-quality UNS C51000 Ph Bronze Plate. Established across numerous countries worldwide, we proudly uphold our reputation as one of the leading Phosphorous Bronze Sheet manufacturers on the global stage.
