TMGB Hole Pattern Copper Busbar, Copper Busbar Dealers, Copper Busbar Supplier, Suppliers, Copper Bus Bar Stock, UNS C10100 Grounding Bus Bar, Oxygen-Free Copper Bus Bar Manufacturer in Bangalore

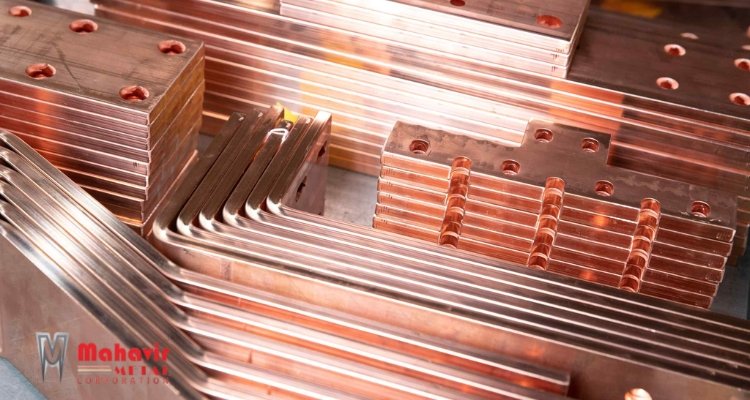

Mahavir Metal Corporation has earned a reputation as a market leader in the Copper Busbar Manufacturer in Bangalore. Mahavir Metal aims at producing high-quality Copper Busbars and customer satisfaction, and provides various types of Copper Alloy Bus Bars in scale to suit every as required by customer. Our ETP Copper Bus Bar are also famous in terms of high-quality material with precision engineering, and are applicable in high-performance applications.
Copper Electrical Bus Bars Suppliers, Copper Busbar Weight, Copper Bus Bars Distributor in Bangalore, Earth Bus Bar Manufacturer In Bangalore, Copper Busbar Price
Mahavir Metal Corporation is a reliable Copper Busbars Supplier in Bangalore. Oxygen-Free Copper Busbars is mostly used in electrical power distribution that providing a working and efficient method of power distribution of electricity. ASTM B187 copper busbars are well known due to their good conducting ability, strength, and flexibility, and are used in most of the electric systems. We manufacture as per approved specifications, including ASTM B187, BS EN 13601, and IS 613. These Copper Electrical Bus Bars come in various thickness of wall between 3mm to 60mm wall thickness, as well as widths between 10mm to 300mm, and can be manufactured to the required lengths to a maximum of 6 meters. Edges may be sharp and rounded depending on the purpose to which they are to be used. We are also a leading Copper Sheet Manufacturer in India.
Copper Busbar Manufacturers - Specifications
Bus Bar Stock in Both ETP and OFC Grades for Switch Gears and electrical panel at Best Price in Bangalore.
Standard :
- Thickness Range: 2 mm to 100 mm
- Width Range: 10mm to 300mm
- Standard Compliance: ASTM B187, BS EN 13601, IS 1897
Testing of Copper Busbars
- Conductivity Testing: Verifies high electrical conductivity for efficient power transmission.
- Dimensional Testing: Ensures uniformity in thickness and width.
Copper Busbar Features
- High Conductivity: Ideal for electrical power distribution systems.
- Thermal Resistance:Handles high temperatures without deformation.
Sizes (Diameter) Lengths
- Width: 10mm to 500mm
- Thickness: 3mm to 100mm
- Standard: 1 meter to 6 meters
Grades Availables of Copper Busbar
UNS C10200 Copper Flat Bus Bars Thickness Chart
| Grade | Wall Thickness |
| C10200 Copper Busbar | Up to 50 mm |
Copper Busbar Weight Chart
| Size | 1 MTR wt(K.G) | 3.660 MTR wt(K.G) |
| 16 X 3 | 0.43 | 1.6 |
| 20 X 3 | 0.54 | 1.96 |
| 20 X 5 | 0.89 | 3.26 |
| 20 X 6 | 1.07 | 3.9 |
| 20 X 10 | 1.78 | 6.5 |
| 25 X 3 | 0.67 | 2.45 |
| 25 X 4 | 0.89 | 3.26 |
| 25 X 5 | 1.12 | 4.08 |
| 25 X 6 | 1.34 | 4.89 |
| 25 X 8 | 1.78 | 6.52 |
| 25 X 10 | 2.23 | 8.15 |
| 25 X 12 | 2.67 | 9.78 |
| 30 X 5 | 1.34 | 4.89 |
| 30 X 6 | 1.6 | 5.86 |
| 30 X 10 | 2.67 | 9.78 |
| 30 X 12 | 3.2 | 11.73 |
| 40 X 5 | 1.78 | 6.52 |
| 40 X 6 | 2.14 | 7.82 |
| 40 X 8 | 2.85 | 10.43 |
| 40 X 10 | 3.56 | 13.3 |
| 40 X 12 | 4.27 | 15.64 |
| 50 X 3 | 1.34 | 8.15 |
| 50 X 5 | 2.23 | 8.15 |
| 50 X 6 | 2.67 | 9.78 |
| 50 X 8 | 3.56 | 13.03 |
| 50 X 10 | 4.45 | 16.29 |
| 50 X 12 | 5.34 | 19.55 |
| 60 X 6 | 3.21 | 11.73 |
| 60 X 8 | 4.28 | 15.64 |
| 60 X 10 | 5.34 | 19.55 |
| 60 X 12 | 6.41 | 23.46 |
| 63 X 6 | 3.37 | 12.32 |
| 63 X 8 | 4.49 | 16.42 |
| 63 X 10 | 5.61 | 20.53 |
| 63 X 12 | 6.73 | 24.63 |
| 75 X 6 | 4.01 | 14.66 |
| 75 X 8 | 5.34 | 19.55 |
| 75 X10 | 6.68 | 24.44 |
| 75 X 12 | 8.01 | 29.32 |
| 80 X 6 | 4.27 | 15.64 |
| 80 X 10 | 7.12 | 26.06 |
| 80 X 12 | 8.55 | 31.27 |
| 100 X 6 | 5.34 | 19.55 |
| 100 X 8 | 7.12 | 26.06 |
| 100 X 10 | 8.9 | 32.58 |
| 100 X 12 | 10.68 | 39.09 |
| 120 X 10 | 10.68 | 39.09 |
| 125 X 6 | 6.68 | 24.44 |
| 125 X 8 | 8.9 | 32.58 |
| 125 X 10 | 11.13 | 40.72 |
| 125 X 12 | 13.35 | 48.87 |
| 150 X 6 | 8.01 | 29.32 |
| 150 X 10 | 13.35 | 48.87 |
| 150 X 12 | 16.02 | 58.64 |
Copper Busbar Supplier - Chemical Composition
| Element | Symbol | Percentage (%) | Description |
| Copper | Cu | 99.9% (Min) | Provides excellent conductivity and corrosion resistance. |
| Oxygen | O | 0.04% (Max) | Ensures deoxidized copper for superior ductility. |
| Phosphorus | P | 0.01% (Max) | Improves strength and reduces brittleness in alloys. |
| Silver | Ag | 0.002% (Max) | Enhances thermal and electrical properties. |
Copper Busbar Mechanical Properties
| Property | Value | Description |
| Tensile Strength | 200 - 400 MPa | Ability to resist breaking under tension. |
| Yield Strength | 40 - 100 MPa | Stress at which material begins to deform permanently. |
| Elongation | 25% - 55% | Percentage of material length increase before breaking. |
| Hardness | 50 - 100 HV | Resistance to surface indentation. |
| Electrical Conductivity | 100% IACS | High conductivity for efficient power transmission. |
| Thermal Conductivity | 390 W/mK | Excellent heat transfer capability. |
Applications of Electrical Copper Busbar
Copper Busbar Manufacturers and Supplier in Bangalore
- Mahavir Metal Corporation
Packing of Copper Busbar in Bangalore
We apply the safest and most efficient means of packaging for every kind of delivery.
- Wooden Boxes
- Wooden Pallets
- Shrink-Wrapp
- Gunny Bags
Ready Stock of Copper Busbar in Bangalore
- ASME SB187 Copper Bus Bar
- Copper Bus Bars Distributor in Bangalore
- Electrical Copper Bus Rod
- Flexible Copper Busbar
- Copper Battery Bus Bars
- Pure Copper Electrical Tin Bus Bar
- Copper Bus Bar Stockholder in Whitefield
- ASTM B187 Copper Bus Bar
- Tinned Copper Busbar
- TMGB hole pattern copper busbar
- Ground Busbar Manufacturer in Jigani
- Copper Alloy Bus Bar
- Electrical Copper Bus Bars
- ETP Copper Bus Bar
- Electrolytic Tough Pitch Copper Busbar
- Copper Bussing
- Flat Red Copper Busbar
- Copper Bus Bar Dealer in Peenya
- Copper Conductor Busbar
- Oxygen-Free Copper Bus Bar
- Copper Bus Bar Dealers in Peenya
- Epoxy Coated Copper Busbar
Copper Busbar Supplier in India Cities
We provide large quantity of Copper Busbar Bars in Bangalore cities. Flexible Copper Busbar is one of the most requested products supplied to Bangalore by us. We also Accept customized Copper Bus Bar orders as per the client's requirements from Bangalore, Peenya, Whitefield, Hyderabad, and many more.
