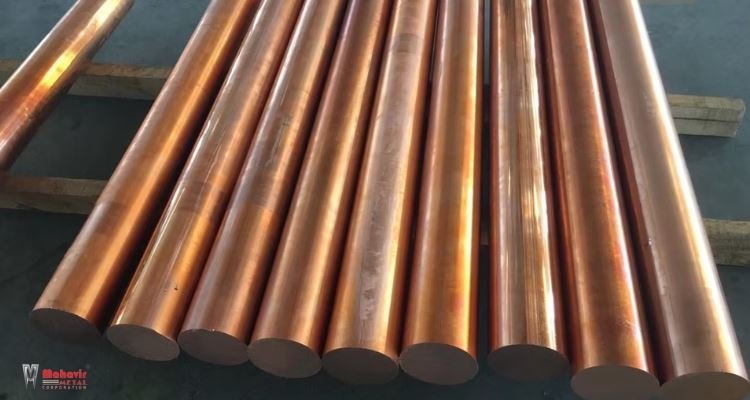

ASTM B187 ETP Copper Grade C11000 Round Rod Manufacturer, CDA 110 ETP Copper Bus Rod, C11000 Electrolytic Tough Pitch (ETP) Copper Rod Exporter, C11000 CU-ETP Hex Rod Manufacturer in India
Mahavir Metal Corporation is the leading ASTM B187 ETP Copper Grade C11000 Round Rods Manufacturer in India providing superior quality metal rods used in electrical and industrial sectors. Our company supplies CDA 110 ETP Copper Bus Rods together with C11000 Electrolytic Tough Pitch (ETP) Copper Rods and C11000 CU-ETP Hex Rods, which combine superior conductivity with high durability. Customers can obtain our products through two processing options of both cold-drawn and hot-rolled and forged versions to increase their mechanical strength. Our dedication to high-end technology enables us to deliver exceptional performance during power distribution as well as electrical grounding operations and industrial applications.
ETP Copper C11000 Round Rod, UNS C11000 ETP Copper Square Rod, ETP Copper C11000 Industrial Rod Stockists, Electrolytic Tough Pitch Copper Round Rod Supplier in India
Mahavir Metal Corporation is a top-quality ETP Copper C11000 Round Rods Supplier and Manufacturer in India, which come in hard, half-hard, and soft annealed conditions. We stock UNS C11000 ETP Copper Square Rods as well as Industrial Rods and Electrolytic Tough Pitch Copper Round Rods, which deliver excellent conductivity along with corrosion resistance. The rod portfolio at Mahavir Metal Corporation includes diameters from 10 mm to 500 mm lengths reaching 6000 mm, thus making them suited for electrical systems and busbars as well as transformers and switchgear and industrial equipment. We are also a leading supplier of Copper Rod C12200.
ETP Copper C11000 Round Bar Specifications
Standard :
- ASTM B124
- ASTM B152
- ASTM B187
- ASTM B370
- DIN 2.0060
- BS 2870 C101
Testing of Copper C11000 Rod
- Chemical Composition Analysis
- Tensile Strength Test
- Hardness Test
Copper C11000 Rod Form
- Round
- Square
- Hex (A/F)
- Rectangle Etc.
Sizes (Diameter) Lengths
- Dimensions : 10-100mm, 100-200mm, 200-300mm, 300-400mm
- Length: 1-1000mm, 1000-2000mm, 2000-3000mm
- Custom Sizes Available
Other Types of Copper C11000 Products
ETP Copper C11000 Round Bar Chemical Composition
| Nation | China | USA | U.K | Germany | Japan | |||||
| Standard No. | GB | ASTM B170 | BS 6017 | DIN 1787 | JIS H2123 | |||||
| Classification | TU0 | TU1 | Grade1 C10100 | Grade 2 C10200 | Cu-OFE C103 | Cu-OF C110 | OF-Cu 2.0040 | Grade1 C1011 | Grade2 C1020 | |
| Chemical Composition | Cu+Ag (%Min) | 99.99 | 99.9 | 99.99 | 99.95 | 99.99 | 99.95 | 99.95 | 99.99 | 99.98 |
| O2 P (PPM) | 10Max 3max | 10max N/A | 5Max 3Max | 10Max N/A | 10Max 3Max | NA NA | NA NA | 10Max 3max | 10max N/A | |
Copper C11000 Rod Mechanical Properties
| Temper | Sect. Size | Type Min | Cold Work | Tensile Strength | Elong. | Temp | YS 0.02% Offset |
YS 0.05% UL |
YS 0.005% Offset |
RH C |
RH B |
RH F |
VH 500 |
BH 3000 |
RH 30T |
BH 500 |
Fatigue Strgth |
Shear Strgth |
Izod Impact Strgth |
| – | in. | – | % | ksi | % | F | ksi | ksi | ksi | C | B | F | 500 | 3000 | 30T | 500 | ksi | ksi | ft-lb |
| – | mm. | – | – | MPa | – | C | MPa | MPa | MPa | – | – | – | – | – | – | – | MPa | MPa | J |
| OS025 | 1.65 | TYP | 0 | 234 | 45 | 20 | – | 76 | – | – | – | 45 | – | – | – | – | – | 159 | 0 |
| OS050 | 1.65 | TYP | 0 | 221 | 45 | 20 | – | 69 | – | – | – | 40 | – | – | – | – | – | 152 | 0 |
| OS050 | 0.06 | 32 | – | 68 | – | 10 | – | – | – | – | – | – | – | – | – | 22 | |||
| OS025 | 0.06 | 34 | – | 68 | – | 11 | – | – | – | – | – | – | – | – | – | 23 | |||
| H55 | 1.65 | TYP | 15 | 276 | 25 | 20 | – | 221 | – | – | 35 | 77 | – | – | 45 | – | – | 179 | 0 |
| H80 | 1.65 | TYP | 40 | 379 | 8 | 20 | – | 345 | – | – | 60 | 95 | – | – | 63 | – | – | 200 | 0 |
| H80 | 0.06 | 55 | – | 68 | – | 50 | – | – | – | – | – | – | – | – | – | 29 | |||
| H55 | 0.06 | 40 | – | 68 | – | 32 | – | – | – | – | – | – | – | – | – | 26 |
Equivalent Grades of ETP Copper C11000 Rod
| COPPER GRADE | WERKSTOFF NR. | UNS | EN | JIS |
| ETP Copper | 2.0060 / 2.0065 | C11000 | CW004A | C1100 |
ETP Copper C11000 Hollow Bar Surface Finish
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
Applications of C11000 Copper Ground Rod
Copper C11000 Rod Manufacturers, Supplier annd Exporter in India
- Mahavir Metal Corporation
Packing of Copper C11000 Rod
We apply the safest and most efficient means of packaging for every kind of delivery.
- Wooden Boxes
- Wooden Pallets
- Shrink-Wrapp
- Gunny Bags
Ready Stock of Copper C11000 Rod/Bar in India
- C11000 copper ground rod
- pure copper earth rod as per BS 7430
- Copper earth rod clamp
- UNS C12200 plated ground rod
- UNS C1220 threaded ground rod
- UNS C19400 copper ground stake
- pure copper earth rod
- UNS C11000 earth spike rod
- UNS C10300 ground stake
- UNS C12000 threaded ground rod
- C11000 Electrolytic Tough Pitch Hex Bars
- C11000 Electrolytic Tough Pitch Square Bars
- C11000 Electrolytic Tough Pitch Round Bars
- Higher Conductivity Copper Round Bars
- Higher Conductivity Copper Square Bar
- Higher Conductivity Copper Flat Bar
- Etp Copper C11000 T-Bar
- Copper C11000 Astm B152 Rounds
- Copper Astm B187 C11000 Hexagon Bar
- Hot Rolled C11000 Copper Alloy round Bar
- Higher Conductivity Copper Threaded Round Bar
- Electrolytic Tough Pitch (Etp) Copper Triangle bar
- Higher Conductivity Copper Flat Bar
- Copper Astm B187 C11000 Cold Drawn Bar
- Bright C11000 Copper Alloy Hollow Bar
- C11000 Etp Copper Rolled Billets
- C11000 Etp Copper Annealed Billets
- UNS C11000 Electrolytic Tough Pitch Peeled Rods
- ETP Copper C11000 Round Rods
- ETP Copper 2.0065 Round Rod
- Cu-ETP C11000 Rectangle Bar
- ETP Copper 2.0060 Bus Bars
- ETP Copper Grade CDA 110 Bus Bar
- ETP Copper C11000 Bus Bar
- ASTM B187 ETP Copper C110 Bus Bar
- ETP Copper C11000 Forged Bar
